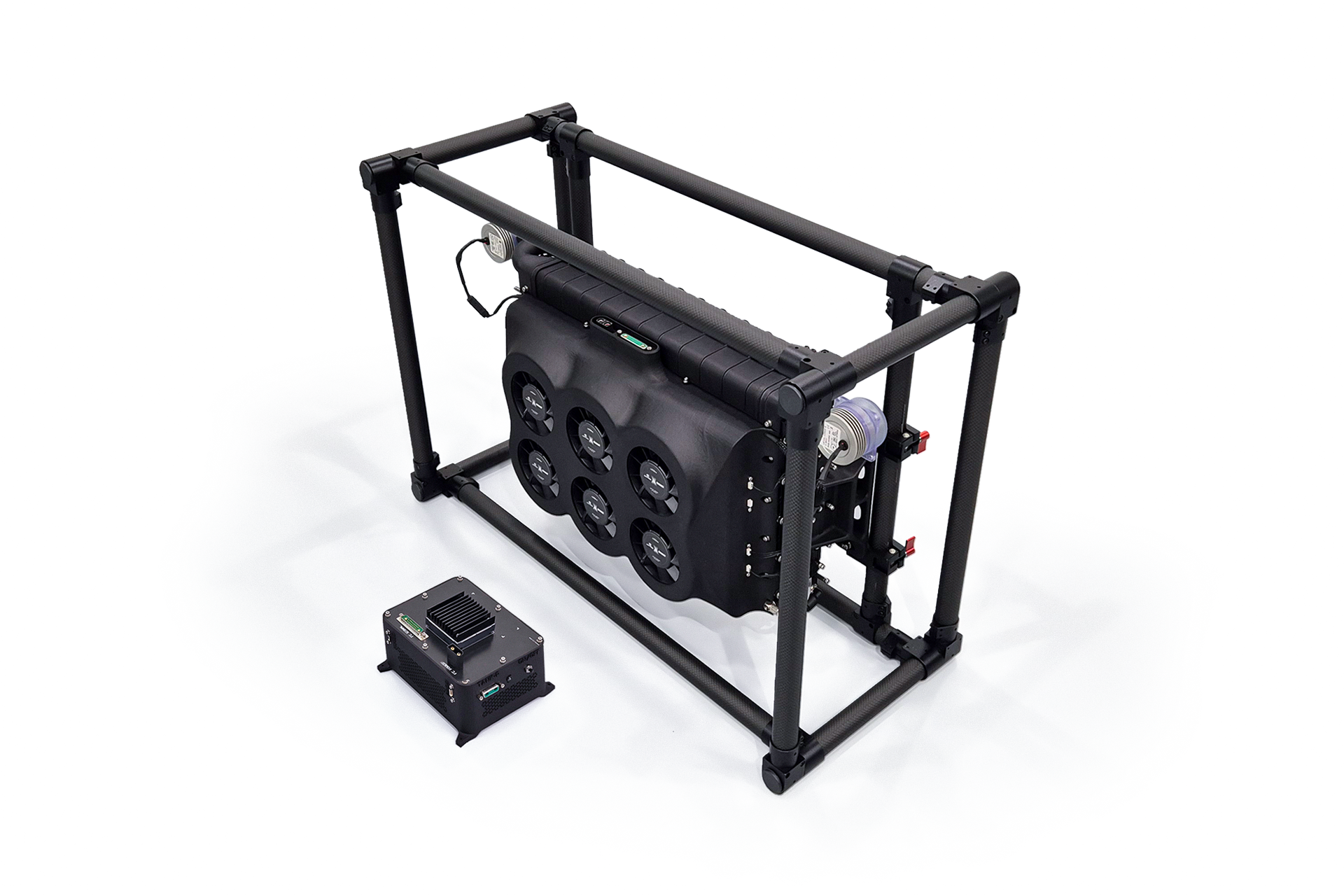

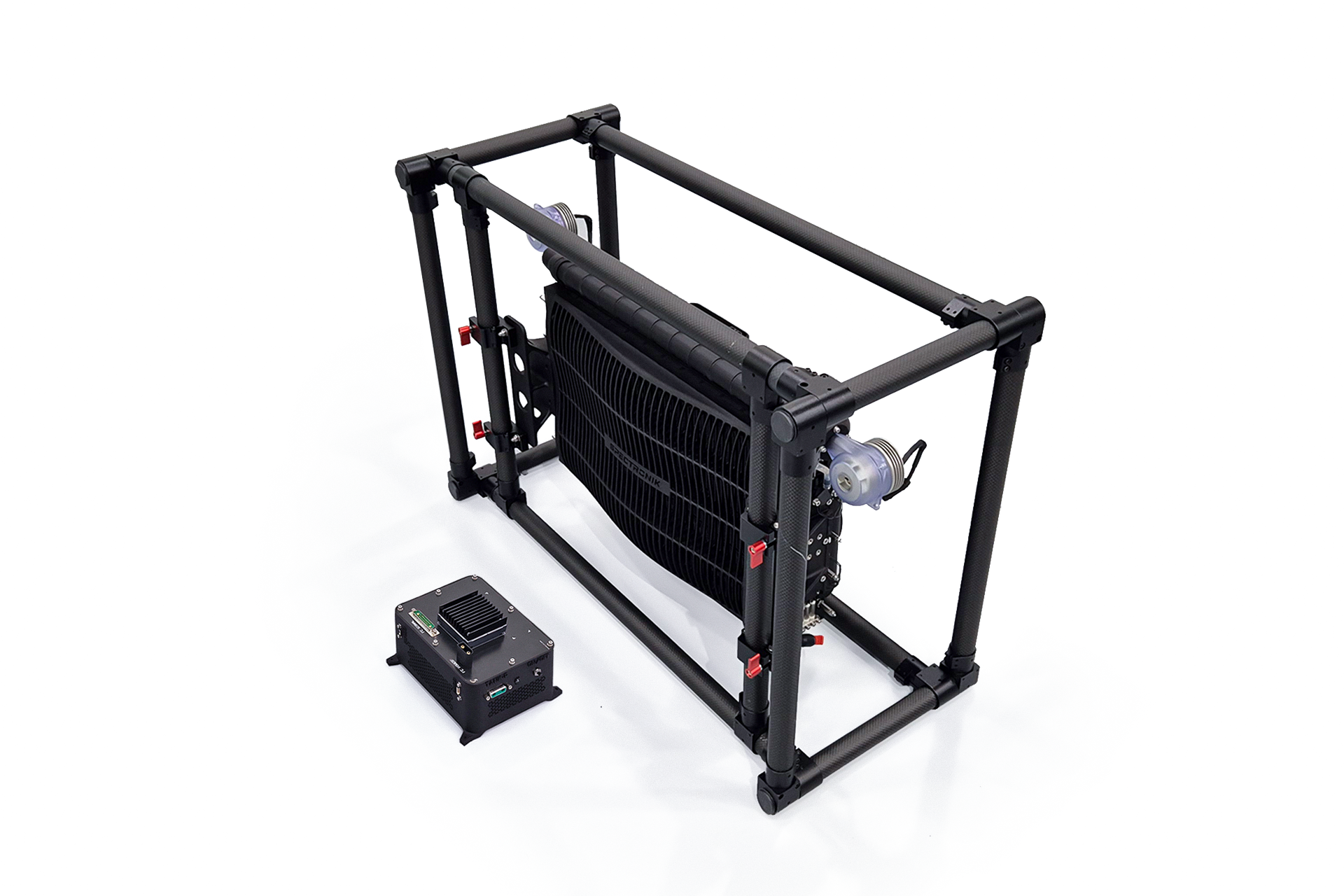

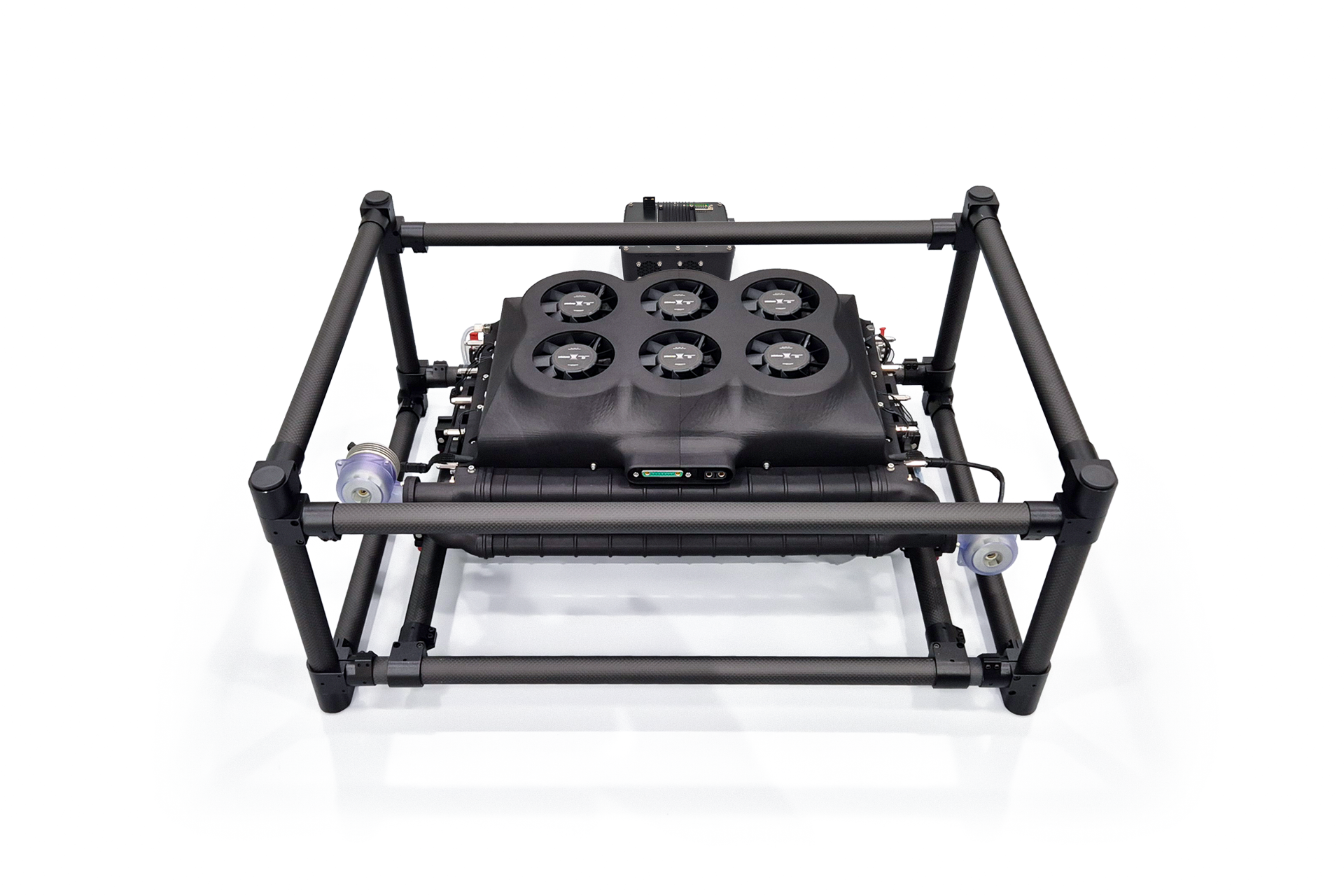

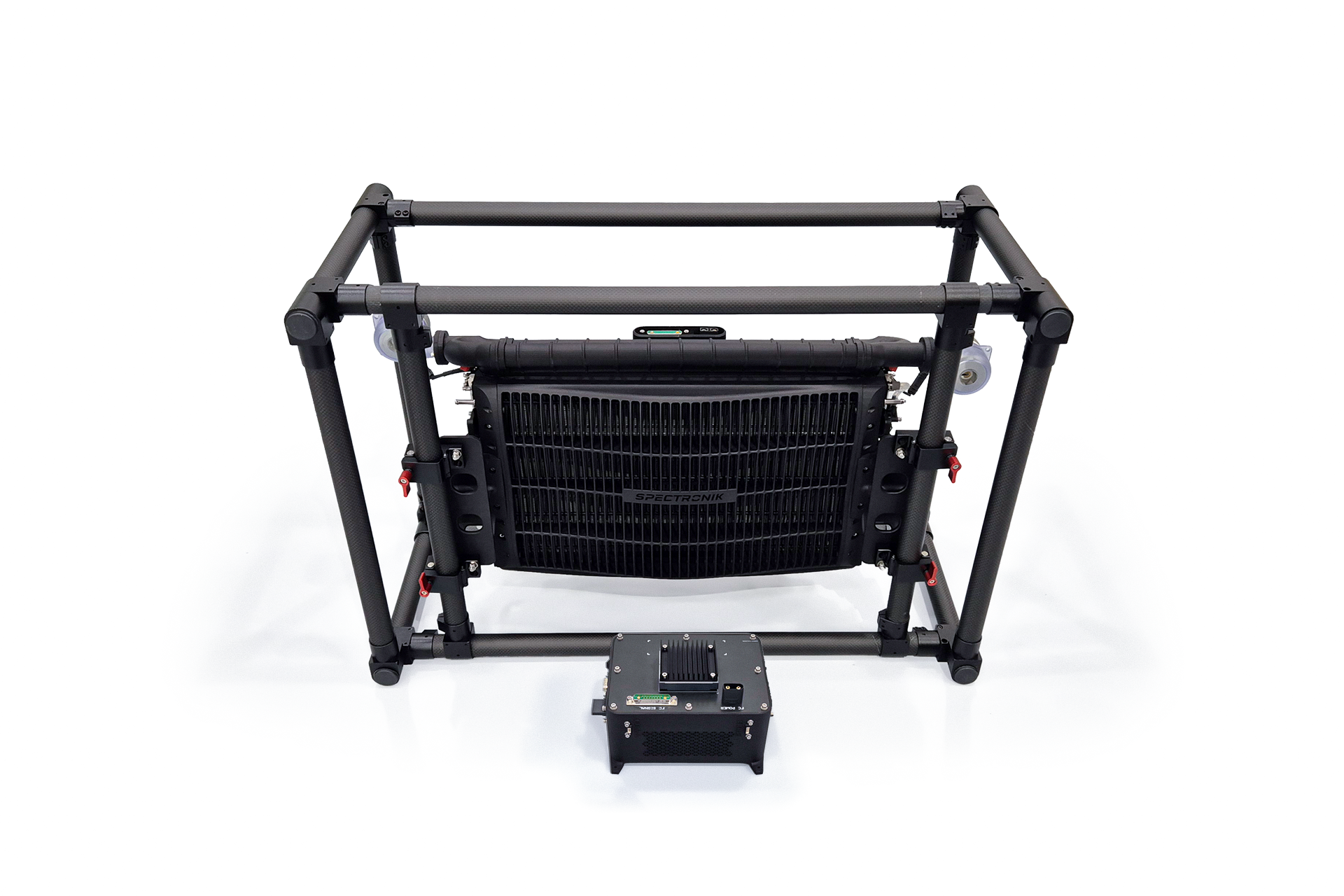

The Protium-3000 is a Closed Cathode, air-cooled Hydrogen fuel cell with higher Current density, operational capability
in a wider ambient temperature range, and longer product lifetime than typical Open Cathode fuel cells in the market.
Capable of delivering up to 3000W of net usable power, the Protium-3000 is ideal for applications such as
aerial drones, ground robots, portable power packs, electrical equipment and personal mobility devices.
The Protium-3000 can be set up in less than 1 minute anywhere with no extra tool or equipment required.
Each system also comes with smart electronic controller for autonomous operation, error protection,
remote control, live system monitoring and data logging.
FEATURES
Closed Cathode
Separated oxidant reactant
and cooling air channels
High Current Density
Up to 0.9A/cm2 at 0.6V/cell
Low Purge Losses
<3% due to intelligent
dynamic purge frequency
Integrated Leak Sensor
Increased user safety
by early detection of
stack leakage
Plug and Play
No tools required
for assembly
Smart Controller
Autonomous fuel cell controls
and system protections
USB Connectivity
UART-to-USB interface cable
for PC connectivity with
optional wireless radio modem
IOT Ready
Live monitoring of fuel cell
status and data logging
via PC/Android GUI App
Specifications
3000/3600W
Rated/Gross Current
62.5/75.0A
Voltage Output
48-72VDC
Start-up Time
30s
Operating Ambient Temp.
[-10,45]°C
Operating Altitude
1500m AGL
System Weight
10.0kg
Max Dimension
632 x 328 x 174mm
Fuel Supply
Hydrogen Gas
Dry, 99.999% purity
Delivery Pressure
0.7 bar (10 psig)
Fuel Consumption @ Rated Power
39L/min
Gas Tubing
PU, 8 x 5.5 (Supply); 6 x 4 (Purge)
Supply & Purge Control
Solenoid valves with integrated pressure sensor
Electronic Controller
Processor Board
WELTER V1.8
Weight (including casing)
950g
Output Connector
LCB-50
Warning & Protections
Low voltage, high/low temperature, high/low pressure, low external power supply, stack leakage
Communication
UART (USB cable for PC connectivity provided)
Data Acquisition (DAQ) Software
PC GUI App
Remote Control
Fan speed, blower speed, manual purge, remote on/off
What’s in the Box
- 80-cells graphite plate fuel cell stack with protective casing, oxidant manifold and cooling airflow hood
- Electronic controller with protective casing
- Heat management system (cooling fans with integrated DC-DC power supply and pwm control)
- Oxidant and fuel supply system (blowers, solenoid valves, gas pressure sensor, gas tubing and connector)
- User interfaces (On-off push button, status LED, load output connector, external power supply connector)
- UART-to-USB for PC app connectivity
- Carbon fiber mounting rack for bench-top testing and transportation protection
- Factory Acceptance Tests (FAT) report
VOLTAGE-CURRENT (VI) CURVE
Test Conditions
- Ambient temperature: 24°C
- Relative humidity: 60%
- H2 supply pressure: 10psig
- Dead-ended operation
- Balance-of-plant (BOP) powered by fuel cell
- Tcell at 3000W: 66°C
OPTIONAL ACCESSORIES
WATCH THE 6-PART MINI SERIES BELOW
.png)
1

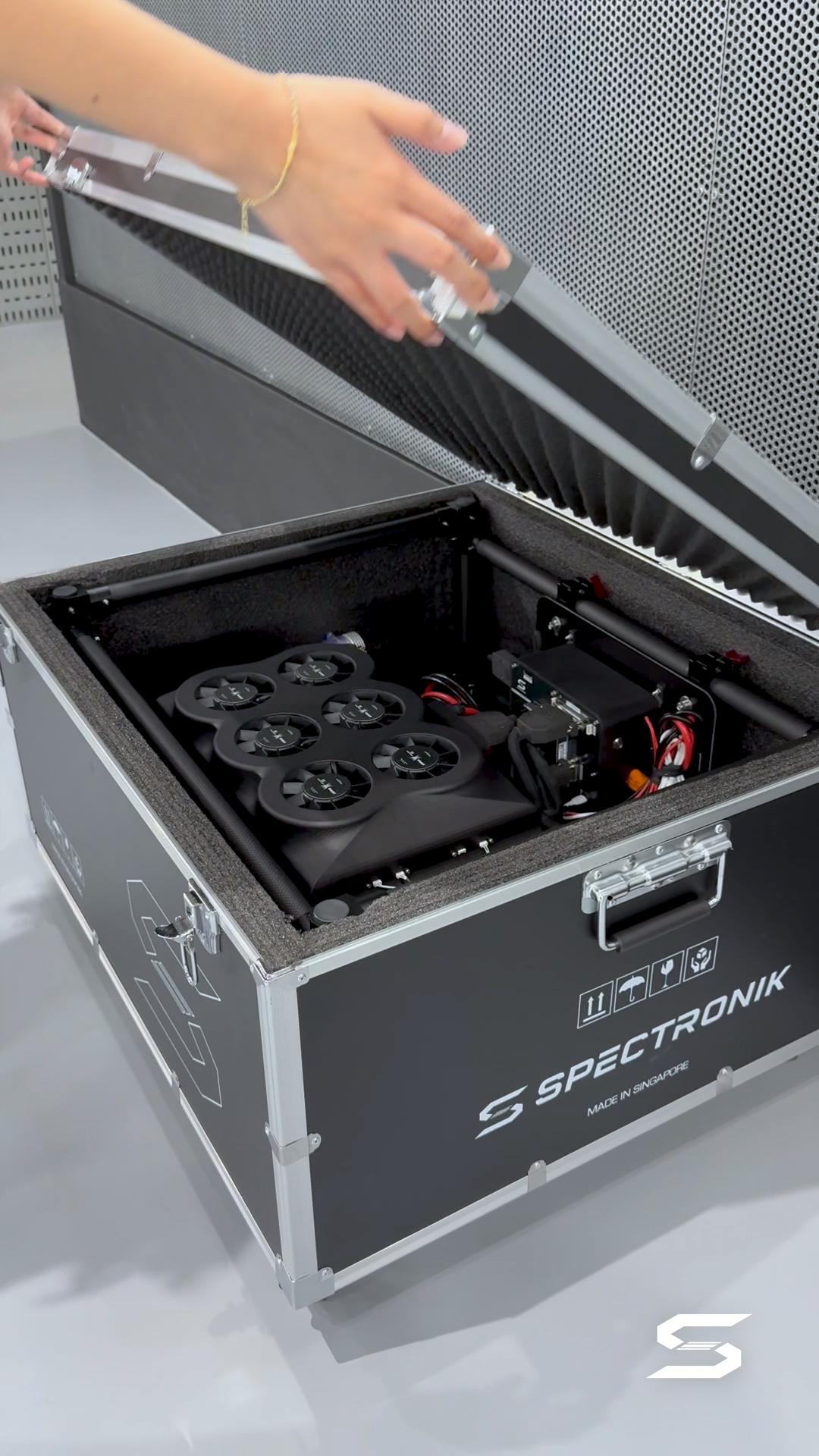

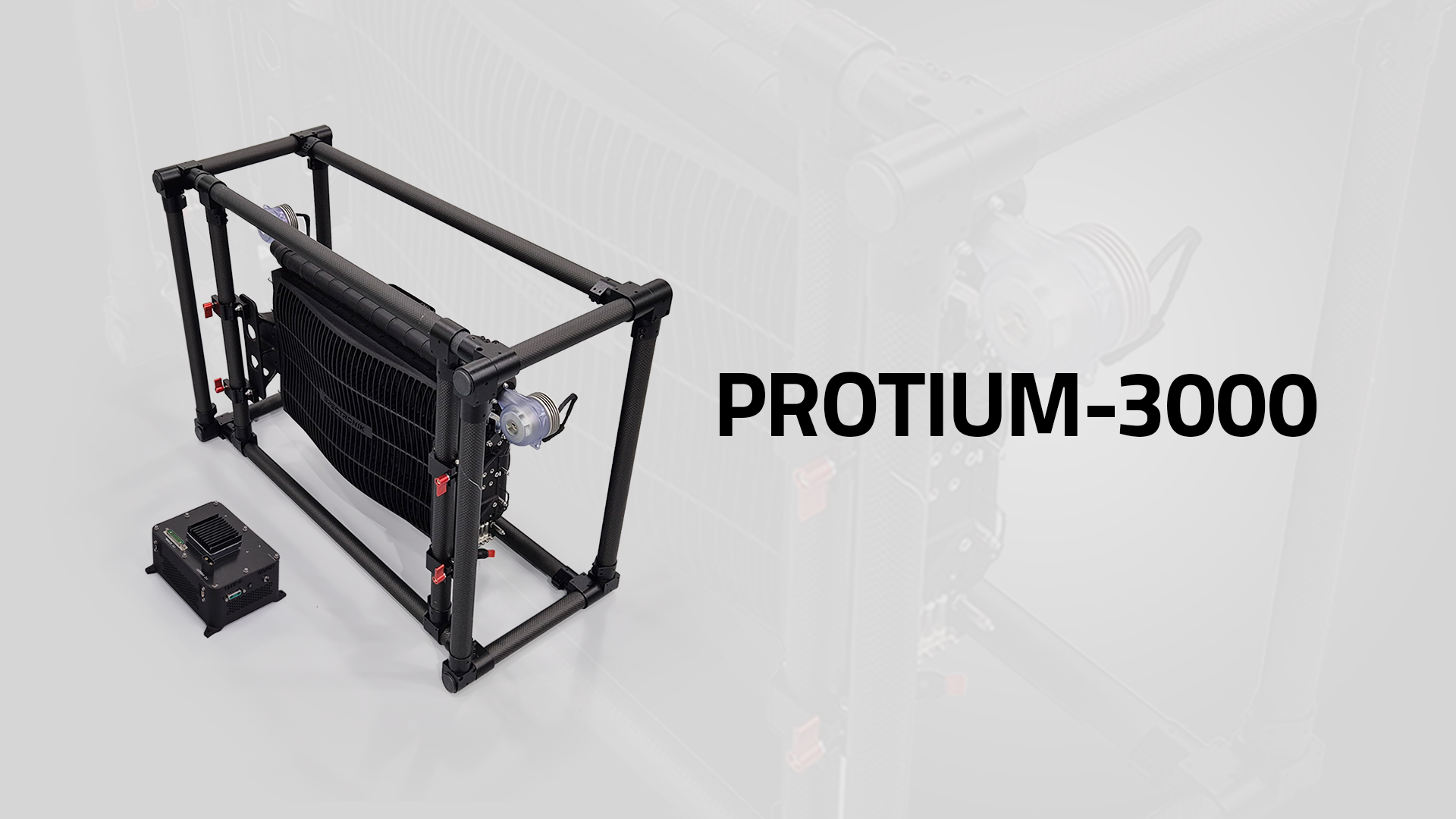

Protium-3000 Unboxing
Unveiling of what’s in the box!
2

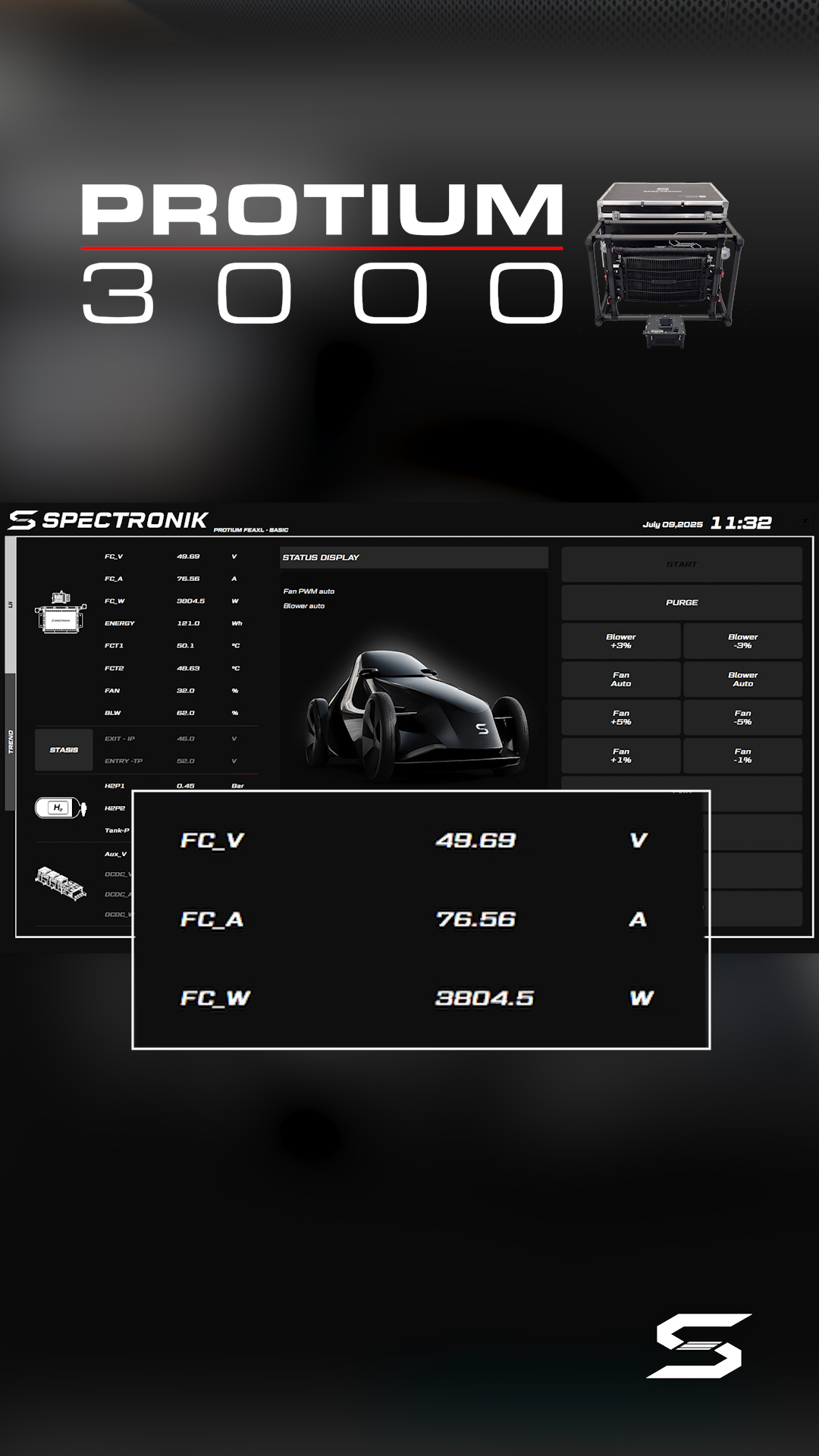

Full Power Output
With a gross power output of 3800W, we ensure that you can get a net usable power of 3000W.
3

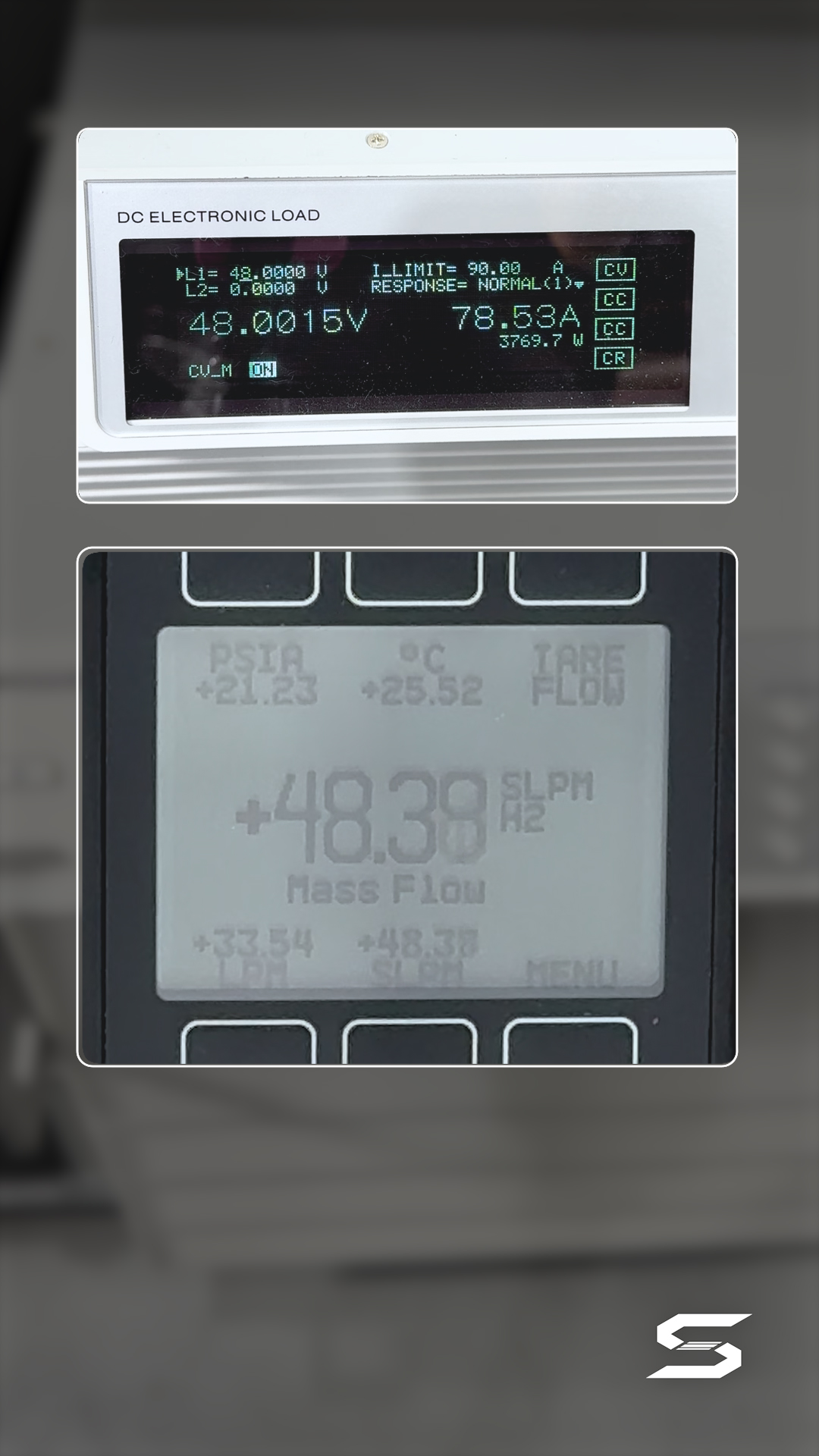

H2 Consumption Rate and Fuel Cell Efficiency
Protium-3000 has a peak electrical efficiency of 52% and a nominal efficiency of 43% at its rated power output.
4

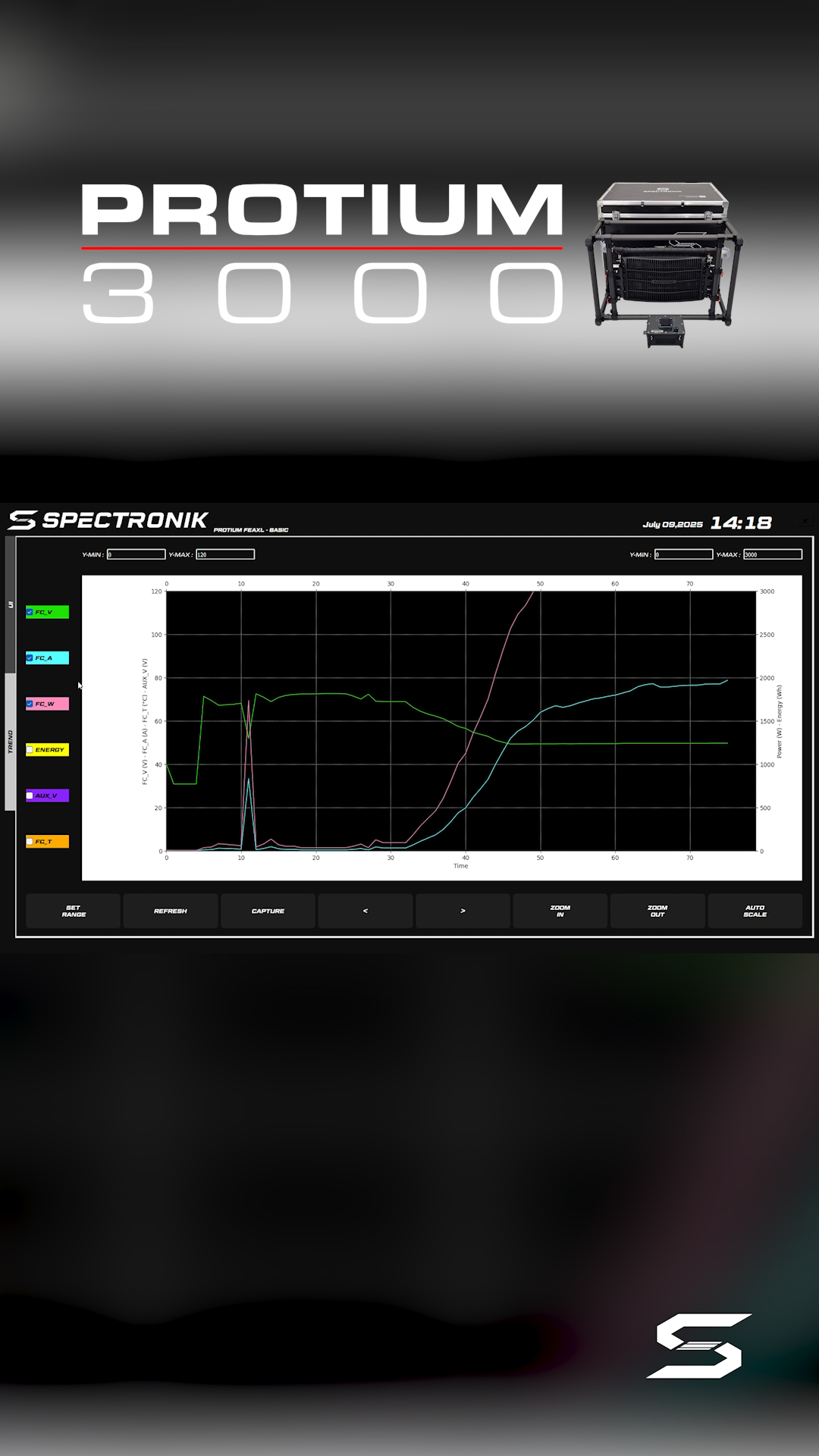

Graphic User Interface (GUI) PC App
User can monitor live data, plot graph, save log file and remotely send command to Protium-3000.
5

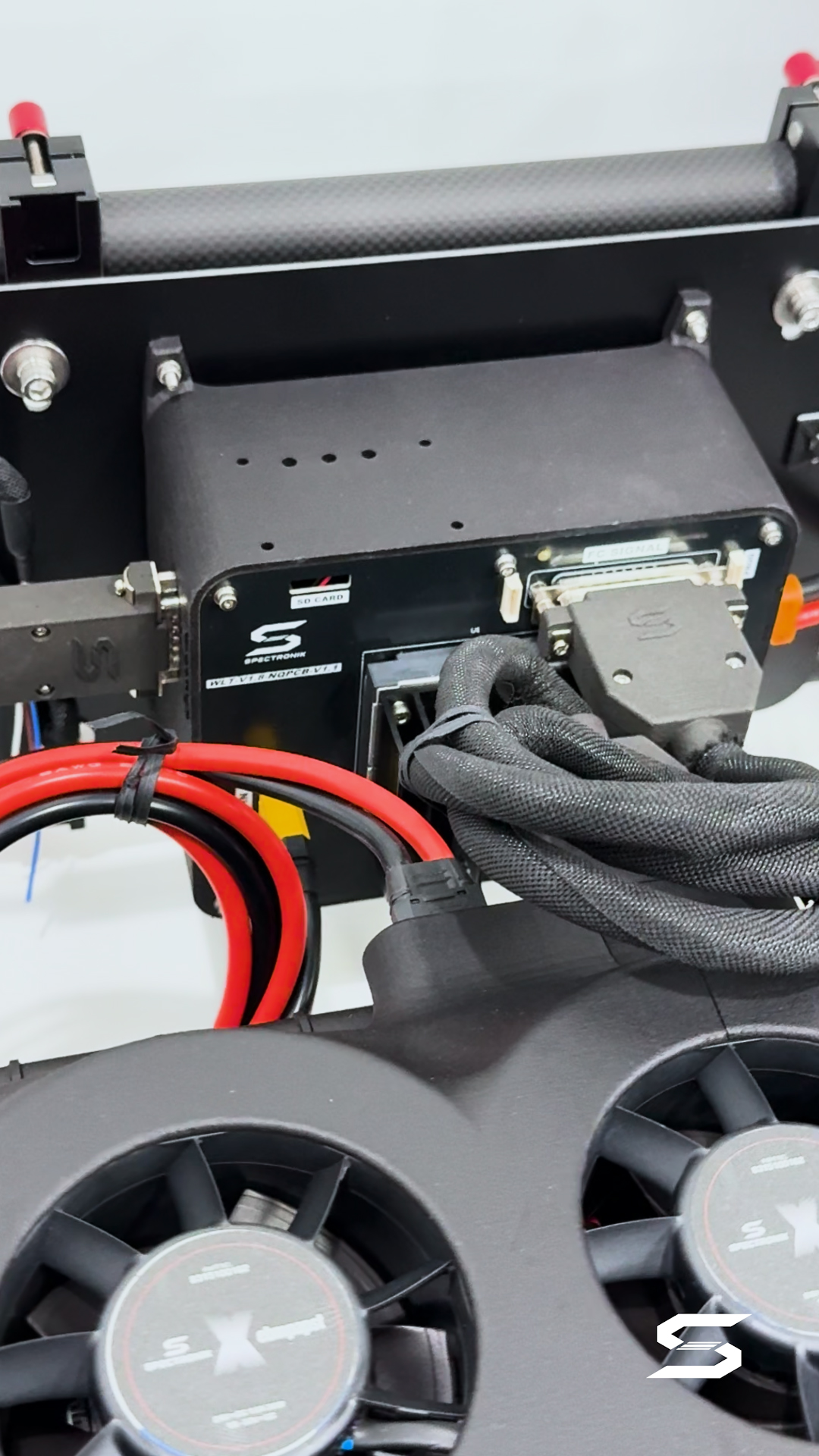

Autonomous System Protections
Protium-3000 comes with an Electronic Controller that autonomously shuts down the system in the event of error to protect the user.
6

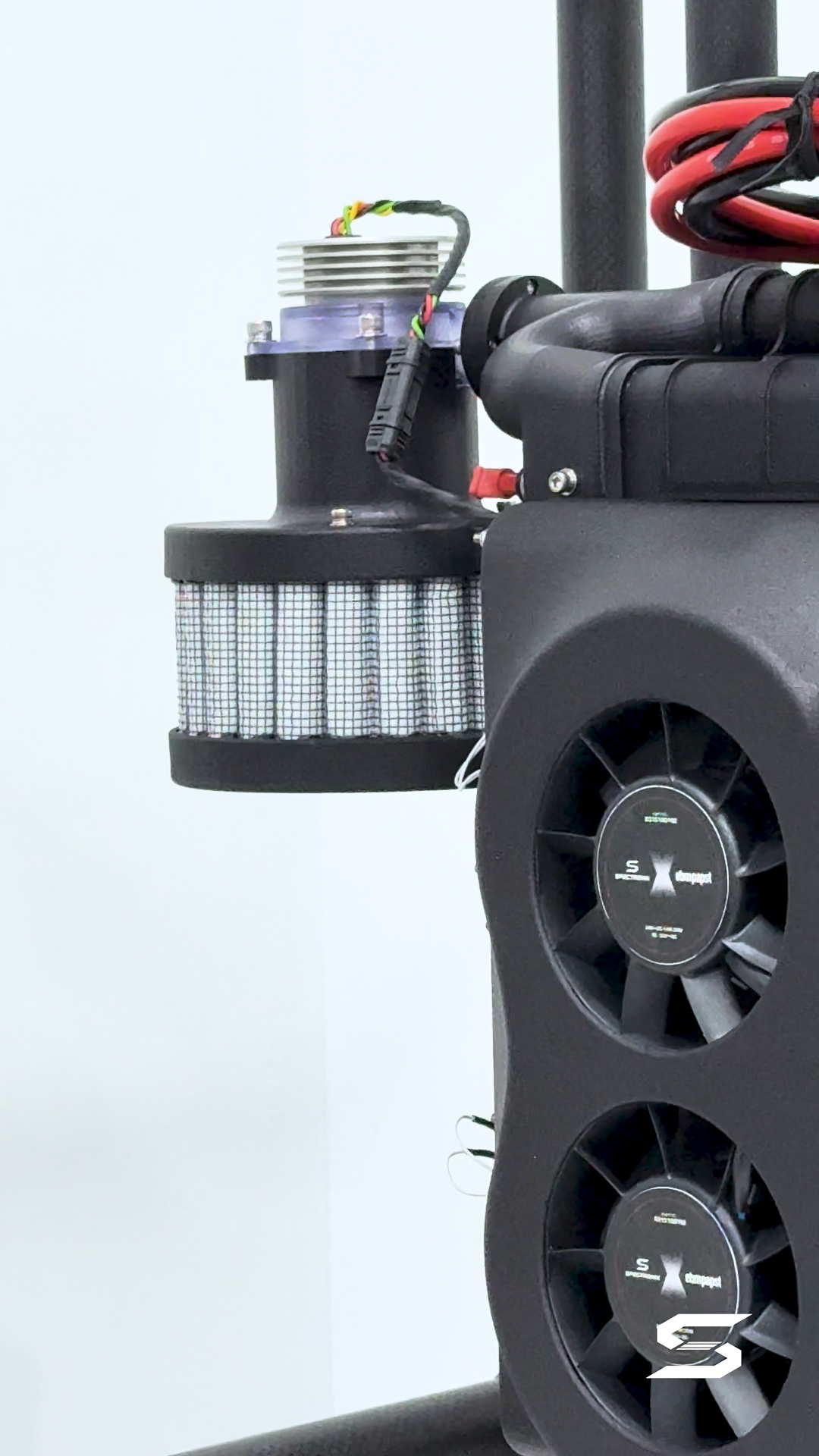

Cathode Filter
Protium-3000 comes with Solberg cathode filters to protect the fuel cell in harsh operating environments.
TECHNICAL DOSSIER
Download the Technical Dossier by UK Magazine Unmanned Systems Technology June/July 2021 edition,
where Spectronik's closed cathode air-cooled fuel cells superior
technical advantages are described in detail.
Download the full technical dossier here
