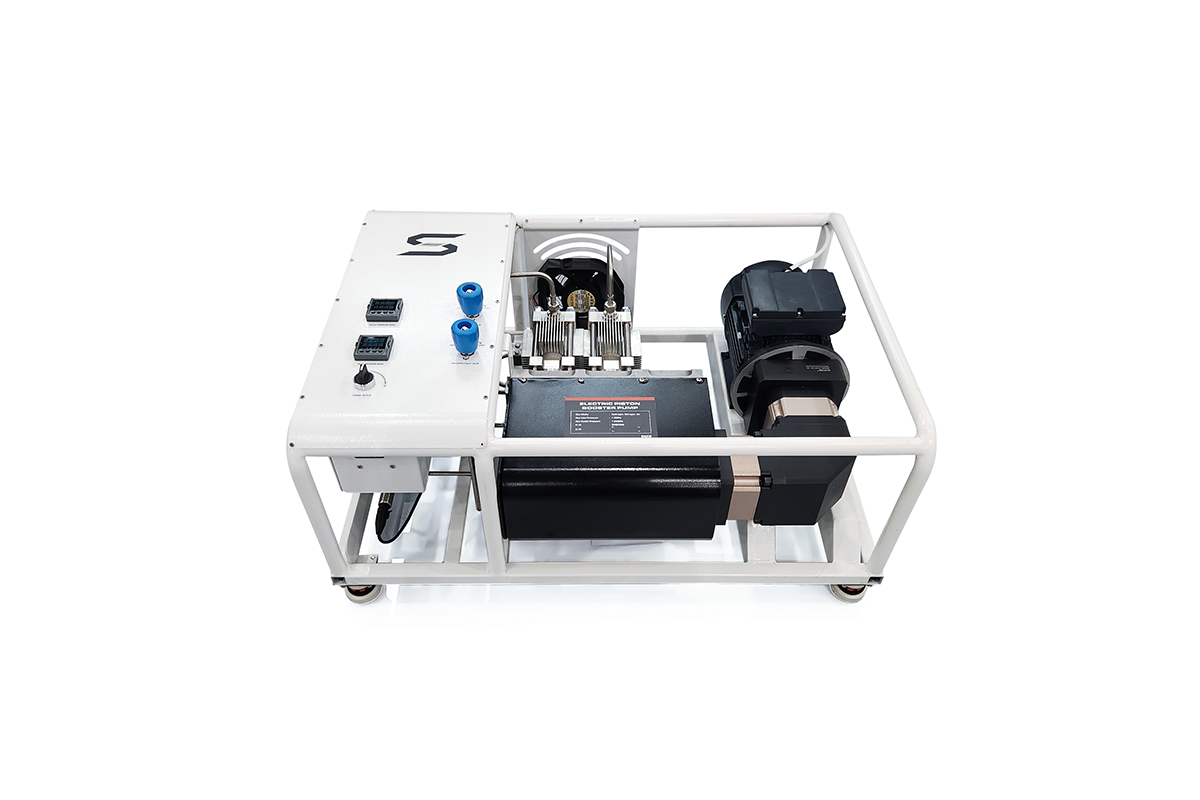

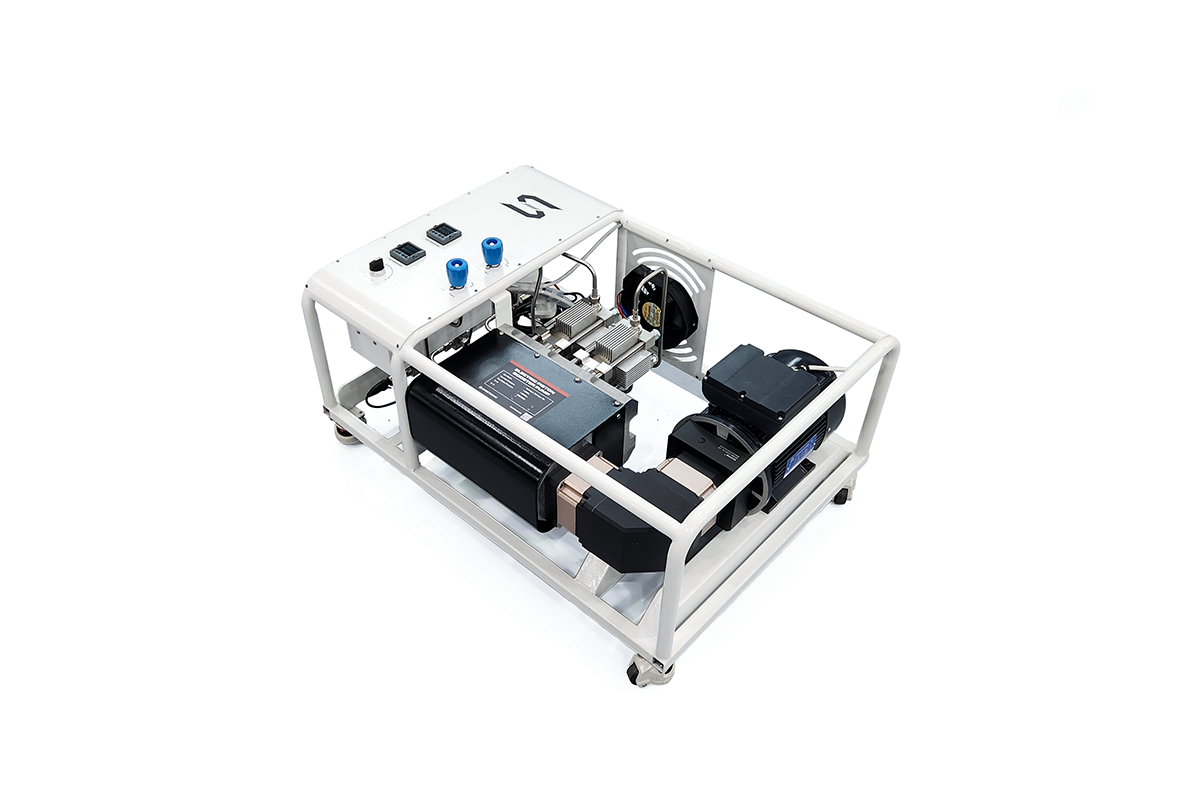

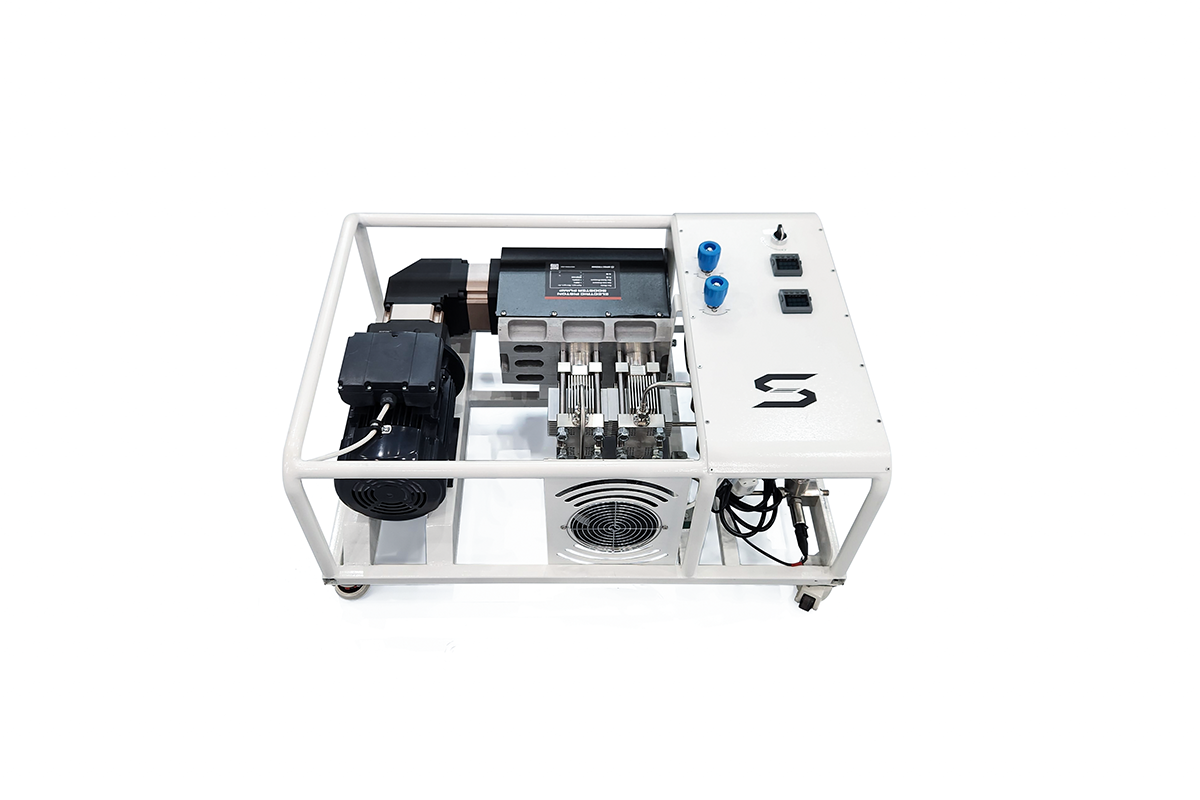

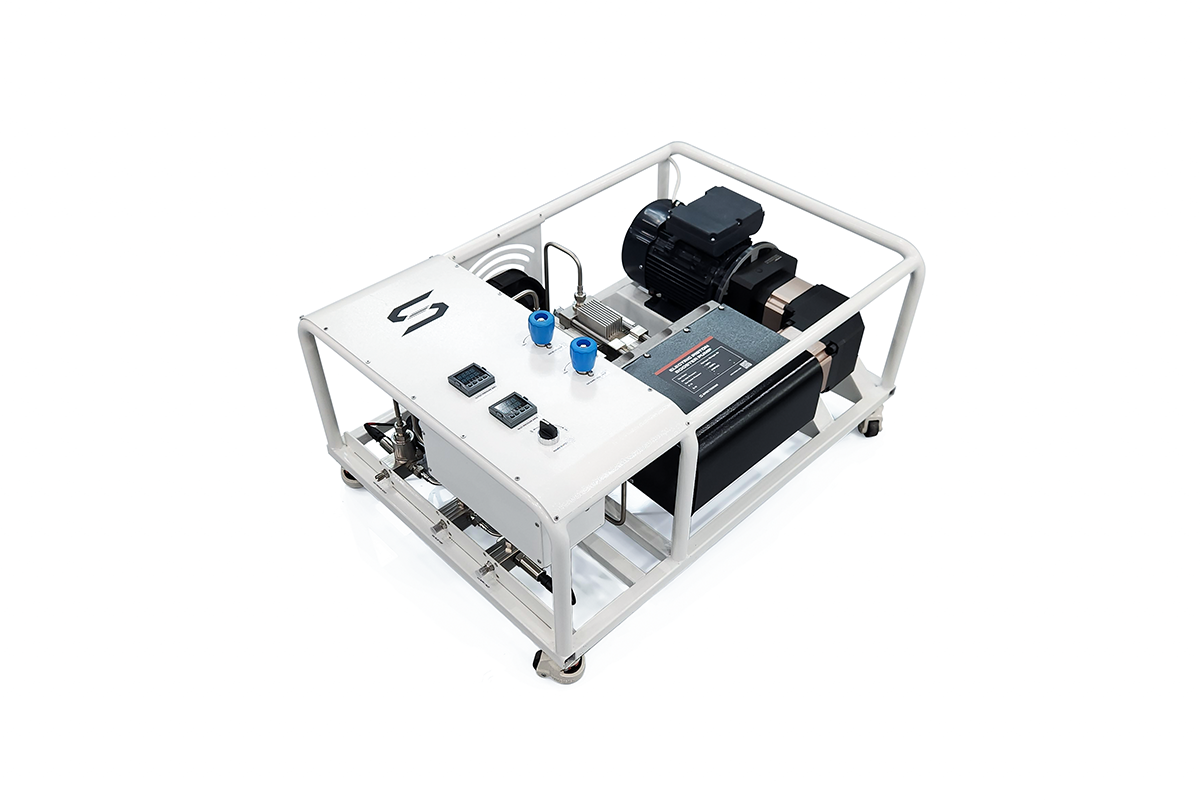

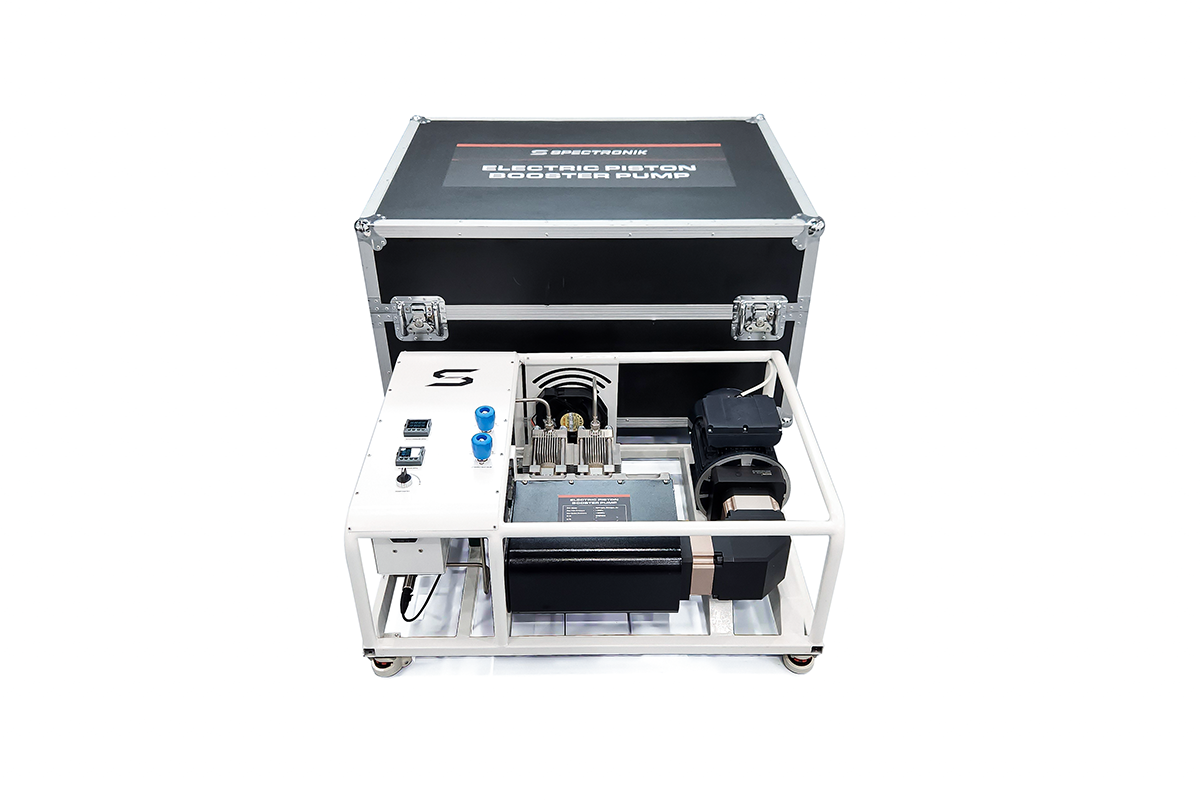

The Gas Booster Pump is a double acting, two-stage, electric driven system ideal for compressing Hydrogen gas from lower pressure source into high pressure cylinder. It has no belts and pulleys, enabling low noise electric pumping operation. It also has an integrated cooling fan to dissipate the heat of compression to ensure long seal life.

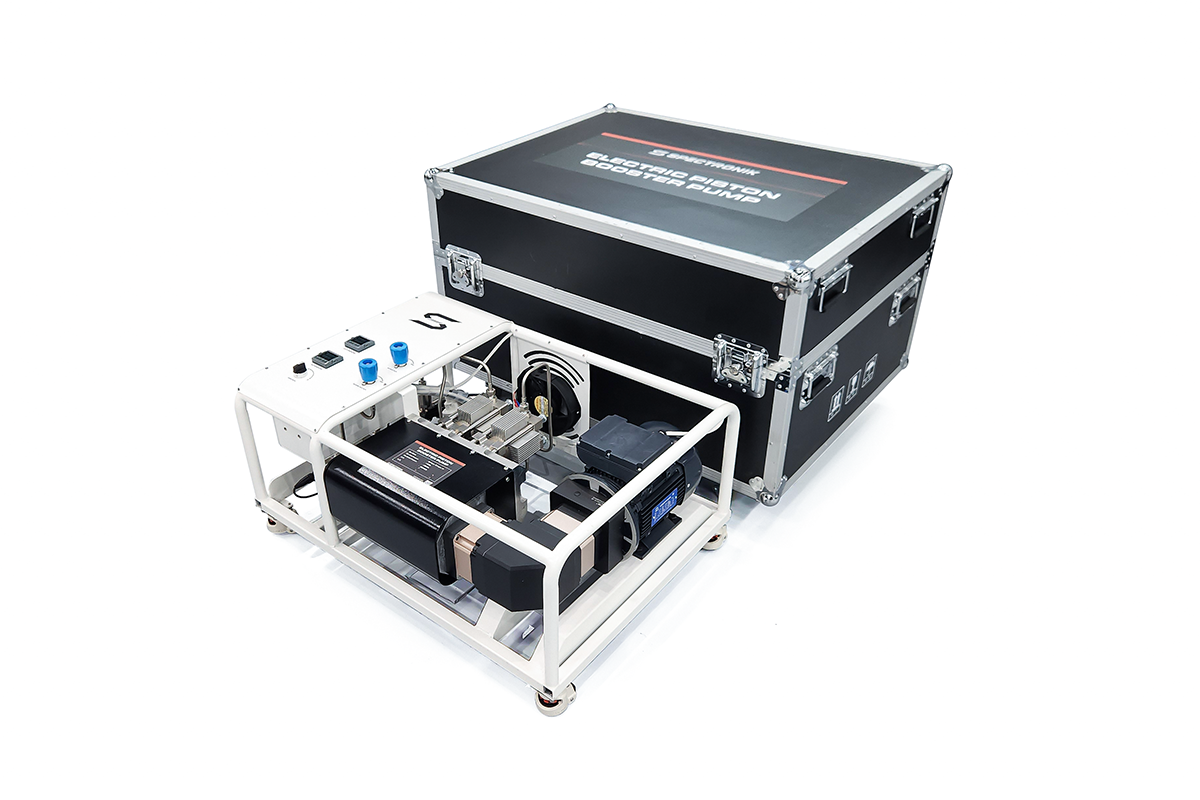

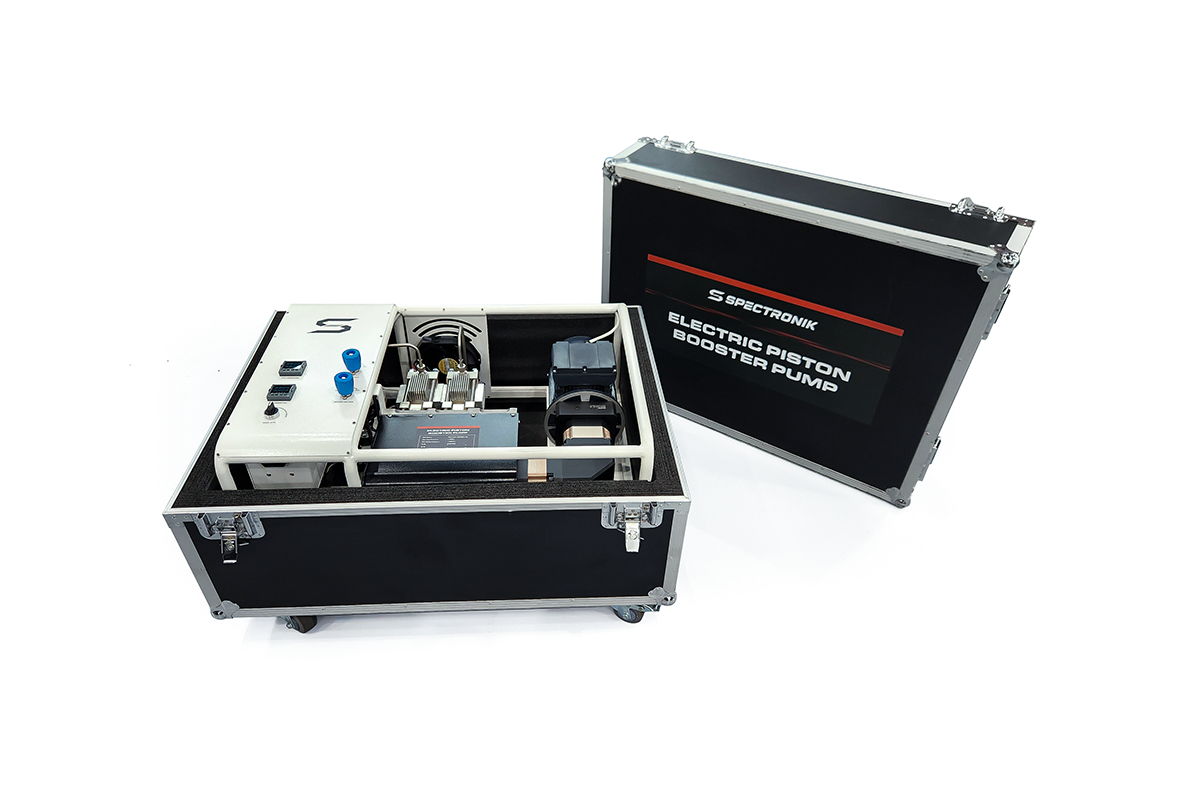

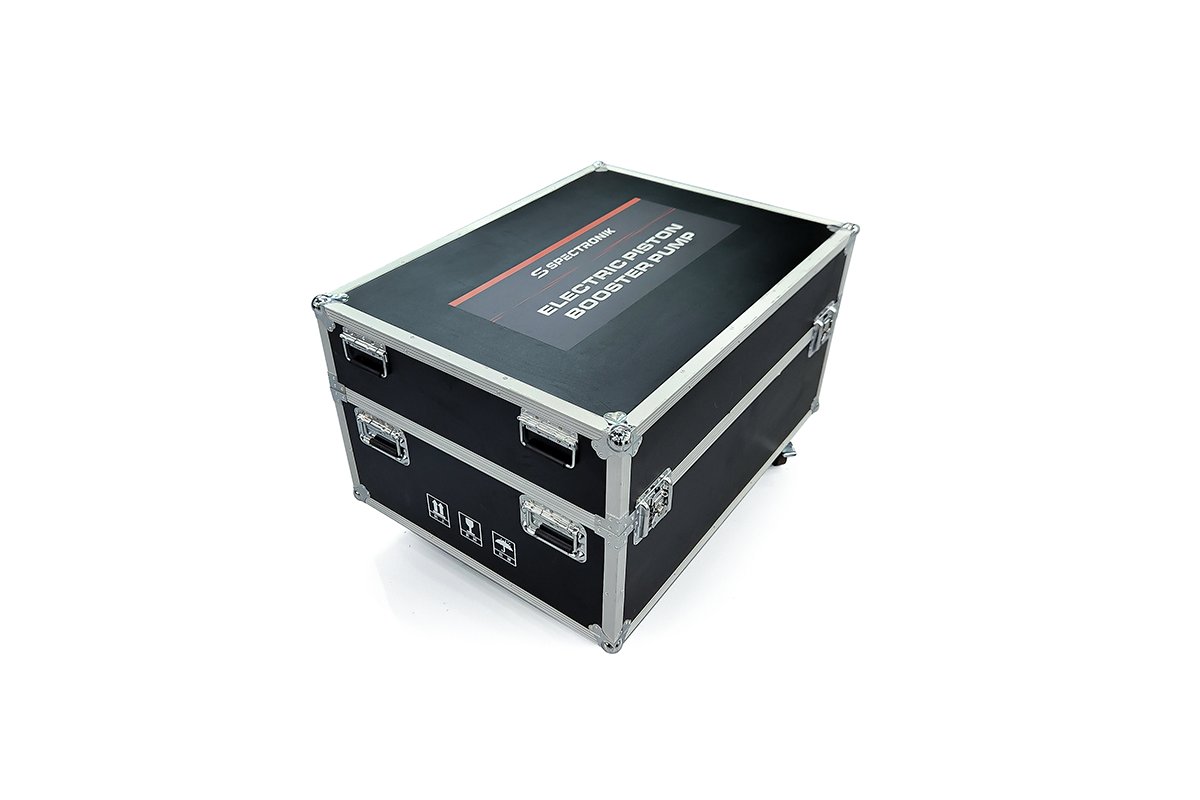

The Gas Booster Pump is very compact - measuring less than 100 x 60 x 30 cm, and has 4 heavy duty caster wheels to allow a single user to easily move it around. It also comes in a robust flight case to protect the equipment during storage and transportation.
MECHANICAL SPECIFICATIONS
Hydrogen, Nitrogen, Air
Min Inlet Pressure
30bar
Max Outlet Pressure
350bar
Flowrate
120L/min
Nois
<70dB
Power Requirement
220VAC, 50Hz, 1.5kW
Dimension
940 x 292 x 559 mm
Weight
80kg
Gas Inlet/Outlet/ Relief Port Connection
M12 x 1.25
Cooling
Air cooled with integrated cooling fans
Lifetime
2000h without maintenance (integrated mileage hour-meter)
Smart Control
Configurable outlet pressure with automatic stop
Features
- User configurable High-Pressure Limit to automatically stop the Gas Booster Pump when the desired target pressure is reached
- User configurable Drop-Off Pressure to automatically restart the Gas Booster Pump when the target pressure drops by a preset value
- Manual Start and Stop switch
- Inlet and Outlet Pressure digital display meters
- Inlet Shutoff Valve (needle type)
- Pressure Relief Valve (needle type)
- Inlet and Outlet 10-Micron filters
- Integrated cooling fan
- 6-digit hour meter

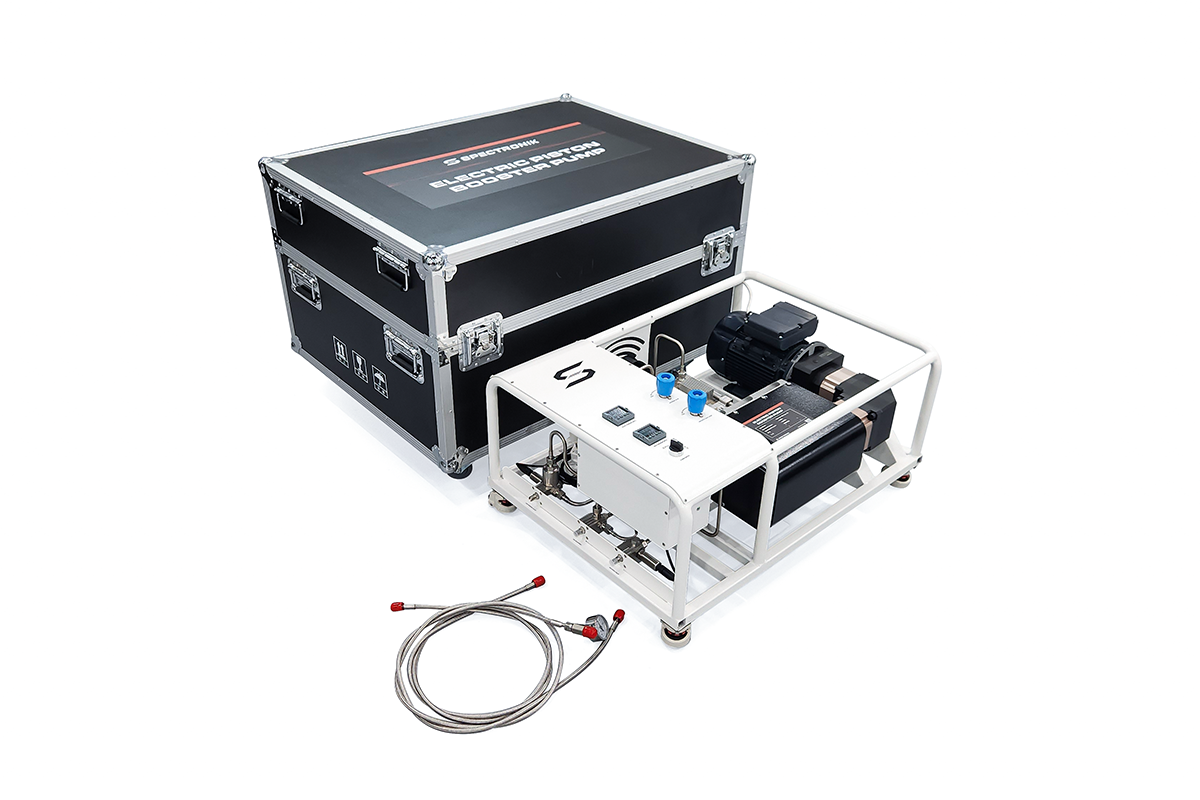

What’s in the Box
- Electric driven Gas Booster Pump with control panel
- Stainless steel gas inlet and outlet flexible hoses
- Storage and transportation flight case with caster wheels
